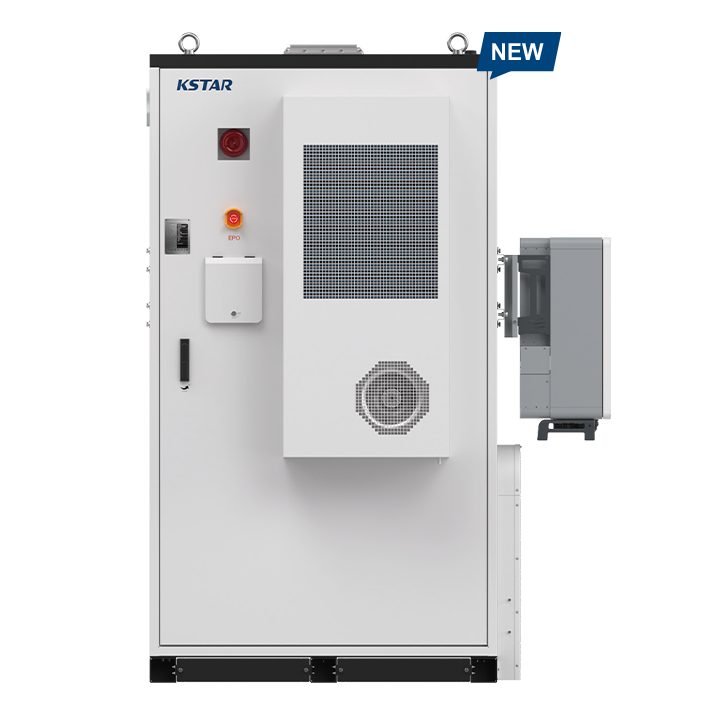

KAC80DP2 / KAC100DP2 / KAC110DP2 / KAC125DP2 BC197DE2 / BC215DE2 / BC233DE2

BluePulse Series 80-125kW / 125-233kWh

The next-generation BluePulse Series delivers 80kW to 125kW of scalable power, ideal for commercial and industrial applications. Featuring instant 10ms on/off-grid switching and no external switching requirements, it ensures uninterrupted backup power. With integrated BMS/EMS, it supports self-consumption, peak shaving, and time-of-use modes for optimized energy management. Advanced safety includes CO detection, alarms, and exhaust fans, while the compact outdoor battery cabinet (BC125DE2–BC233DE2) offers high-density storage. 24/7 cloud monitoring enables remote control for maximum efficiency. Built for reliability and performance, the BluePulse Series / NEW powers demanding environments seamlessly.

sales@kstar.com

Key Features

Versatile Application

• Supports both DC- and AC-coupled solar + storage solutions
• Integrated STS with seamless on/off-grid switching (≤10 ms)
• Scalable system: up to 20 PCS units in on-grid mode, and 6 PCS in off-grid mode

Safe & Reliable

• 280Ah high-capacity cells for enhanced energy density
• Comprehensive safety design: CO detection, audible & visual alarms, exhaust fan,
explosion vent, air inlet valve, and firefighting water inlet
• Protective coverings ensure full electrical isolation and operational safety

Intelligent & User-Friendly

• Integrated monitoring and O&M via KSTAR Sync
• Fully integrated self-developed BMS, EMS, and PCS for maximum flexibility
• Compatible with third-party EMS and VPP platforms

High Performance

• Up to 200% DC/AC ratio for increased output and charging capability
• Supports direct diesel generator (DG) connection without external ATS
• Long battery lifespan exceeding 8,000 cycles

KAC80DP2 / KAC100DP2 / KAC110DP2 / KAC125DP2 BC197DE2 / BC215DE2 / BC233DE2

Backgound image for KAC80DP2 / KAC100DP2 / KAC110DP2 / KAC125DP2 BC197DE2 / BC215DE2 / BC233DE2

Download

Datasheet

Certifications

User Manual

Safety Datasheet

No Files

Certificates
- Certificate_EN 62040_LVD_BC(125~233)DE2_EN_V1.0
- Certificate_IEC 62040_BC(125~233)DE2_V1.0
- Certificate_IEC 62619_BC(125~233)DE2_V1.0
- Certificate_IEC 62619_BC(80~120)DE2A_V1.0
- Certificate_IEC 62040_BC(80~120)DE2A_V1.0
