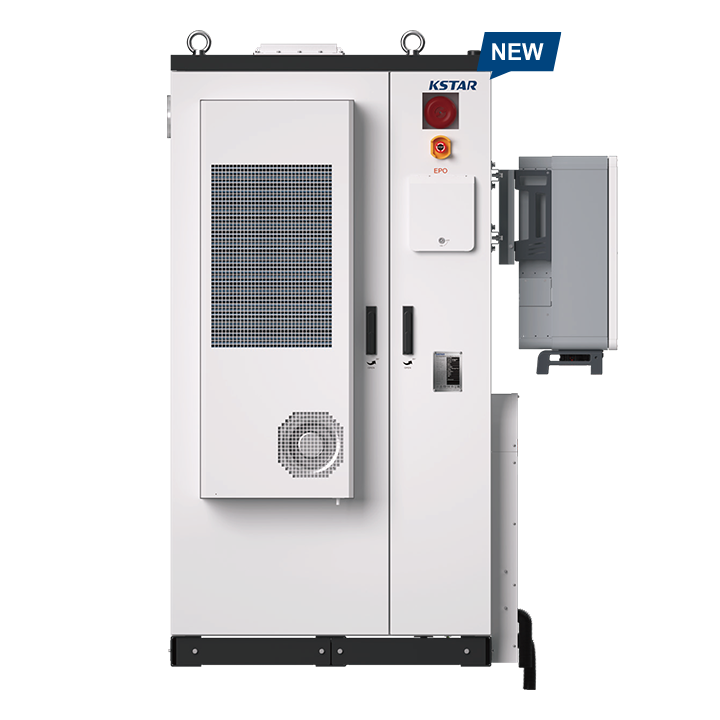

BC63DE2-AU / BC80DE2-AU / BC96DE2-AU / BC70DE2 / BC89DE2 / BC107DE2

BluePulse Series 20kW-50kW / 70-107kWh

The BluePulse Series delivers robust solar-storage solutions with a power range of 25kW to 50kW, making it ideal for factories, hotels, and farms. These DC/AC-coupled systems eliminate external switching needs while ensuring rapid transitions. Built with high-density 200Ah cells, they maximize energy storage in a compact footprint. Advanced safety features like CO detection and alarms ensure reliable operation. Supporting self-consumption, peak shaving, and backup modes, the integrated BMS/EMS platform offers intelligent control. With cloud-based 24/7 monitoring and a long cycle life, the BluePulse Series provides scalable, high-performance power for commercial and industrial applications.

sales@kstar.com

Key Features

Versatile Application

• Supports both DC- and AC-coupled solar + storage solutions
• Integrated STS with seamless on/off-grid switching (≤10 ms)
• Scalable system: up to 20 PCS units in on-grid mode, and 6 PCS in off-grid mode

Safe & Reliable

• 280Ah high-capacity cells for enhanced energy density
• Comprehensive safety design: CO detection, audible & visual alarms, exhaust fan,
explosion vent, air inlet valve, and firefighting water inlet
• Protective coverings ensure full electrical isolation and operational safety

Intelligent & User-Friendly

• Integrated monitoring and O&M via KSTAR Sync
• Fully integrated self-developed BMS, EMS, and PCS for maximum flexibility
• Compatible with third-party EMS and VPP platforms

High Performance

• Up to 200% DC/AC ratio for increased output and charging capability
• Supports direct diesel generator (DG) connection without external ATS
• Long battery lifespan exceeding 8,000 cycles

BC63DE2-AU / BC80DE2-AU / BC96DE2-AU / BC70DE2 / BC89DE2 / BC107DE2

Backgound image for BC63DE2-AU / BC80DE2-AU / BC96DE2-AU / BC70DE2 / BC89DE2 / BC107DE2

Download

Datasheet

Certifications

User Manual

Safety Datasheet

No Files

Certificates
- Certificate_EN 62040_LVD_BC(70~107)DE2_EN_V1.0
- Certificate_AS 60947_PV Switch_KAC(20~50)DP2 _V1.0
- Certificate_AS 4777.2_IEC 62109_KAC(20~50)DP2 _V1.0
- Certificate_IEC 62619_BC(70~107)DE2_V1.0
- Safety Data Sheet_BC70DE2
- Safety Data Sheet_BC89DE2
- Safety Data Sheet_BC107DE2
- Safety Data Sheet_BC63DE2-AU
- Safety Data Sheet_BC80DE2-AU
- Safety Data Sheet_BC96DE2-AU
