Kstar data center infrastructure managerment DCIM system

An effective data centre infrastructure management (DCIM) system gives data centre operators critical insights into power management, environmental management and real-time monitoring of the facility. Without such a solution, data centres face ongoing risks of data loss, data corruption and hardware damage.

KSTAR's IDM modular data centre solution uses a powerful Data Centre Infrastructure Management (DCIM) system to simplify the monitoring and management of a modular data centre through a single platform. It monitors all systems, devices, traffic and applications within the data centre, helping your team identify, document and manage KSTAR modular data centres.

KSTAR Starscope:

The monitoring host features an integrated hardware and software design developed for the KSTAR Starscope DCIM system.

Features:
- Standard 19-inch rack-mounted installation
- 1U height and ultra-low power consumption
- 4 GB/8 GB RAM (optional), 120 GB solid-state drive
- Web-based client-server architecture, with no need to install additional client software
- 3D maps, interactive charts and graphs
- Automatic generation of facility and environmental performance reports
- Supports access from mobile phones and PCs
- Various alarm types, including audio and visual alerts, phone and voice notifications, SMS and email

How does it benefit you?

1. Keep the entire data centre at your fingertips

The system enables real-time monitoring of all equipment operating parameters, ambient temperature and humidity, fire alarms, water leaks, smoke detection, video feeds and other elements of the modular data centre infrastructure. Data access and management for third-party intelligent equipment can also be developed according to the relevant protocols. Centralised remote monitoring across multiple networks provides a clear, streamlined interface for comprehensive, intelligent and unified supervision.

2. Automatically generated reports improve efficiency

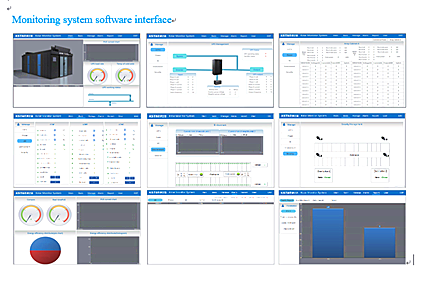

With an intuitive web-based interface, reports can be generated according to customer requirements. Optional functions also enable effective monitoring of data centre resource usage and support resource pooling.

3. Reduce risk
The system provides timely alerts when a fault occurs, helping eliminate failure risks caused by delayed or inadequate manual operation and maintenance inspections.

4. Save costs
It reduces staffing requirements for operation and maintenance and increases resource utilisation by more than 20%.

Smart data centres need advanced DCIM systems. KSTAR's data centre infrastructure management system monitors data centre facilities in real time, including UPS systems, storage batteries, high- and low-voltage power distribution, diesel generators and precision air conditioners. It also monitors environmental parameters such as temperature, humidity, fire alarms, security alarms and on-site images. In addition, the system can detect faults, generate timely alerts, and remotely control and adjust equipment to enable centralised monitoring and management. This helps reduce operation and maintenance costs in the data centre equipment room and improve operational efficiency. To learn more, contact sales@kstar.com.
